Node - AI Data Object Generator


This node can extract and parse the text entered by the user in the prompt based on defined parameters and instructions, turning it into a data object for use in subsequent nodes.

Use Case: Recognize data objects such as order number and order details from the sales order text.

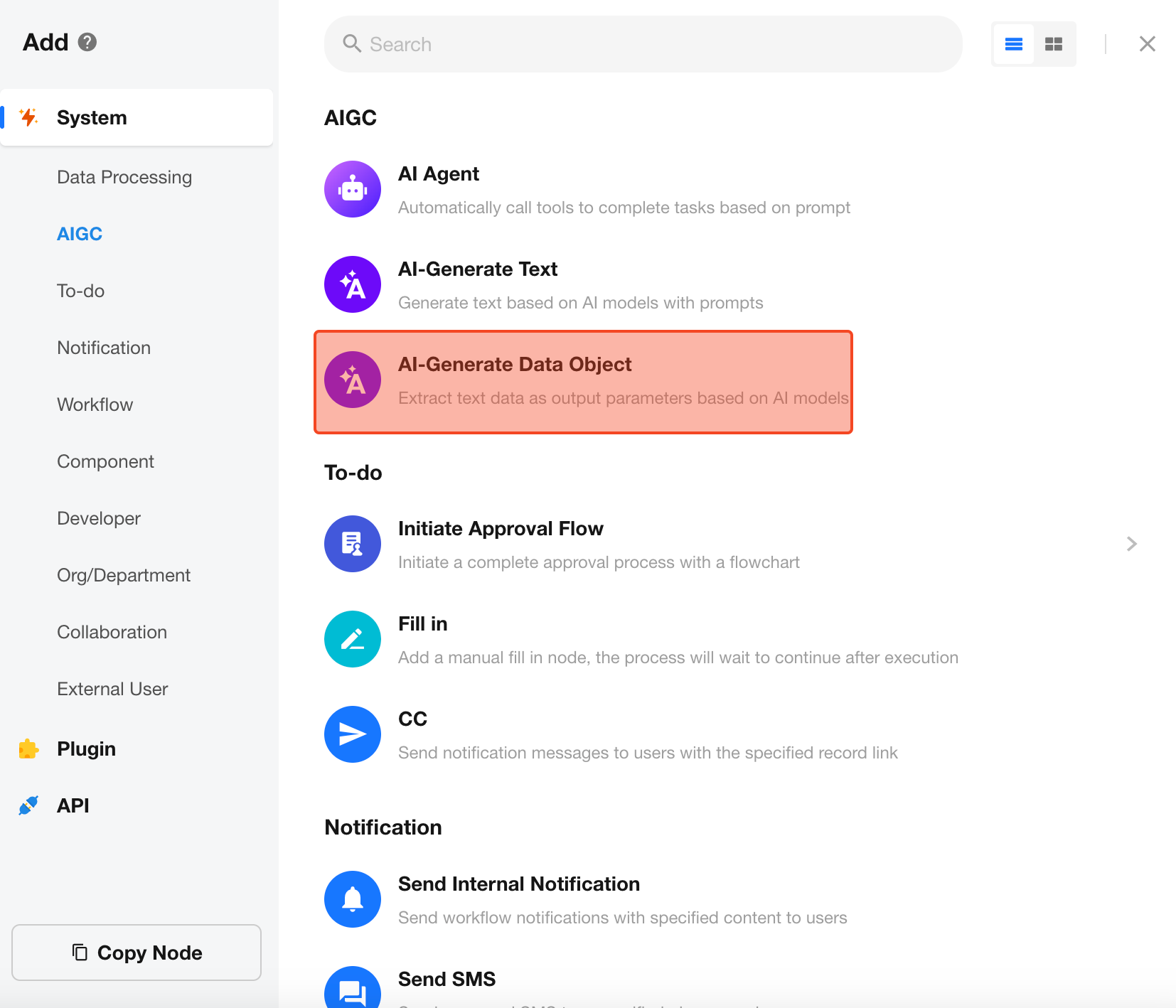

Add the [AI Data Object Generator] node

Configure the node

Select the AI model

It supports 8 different models including GPT and Tongyi, each with a different price. After selection, the corresponding price will be displayed and deducted from the organization’s balance after each use.

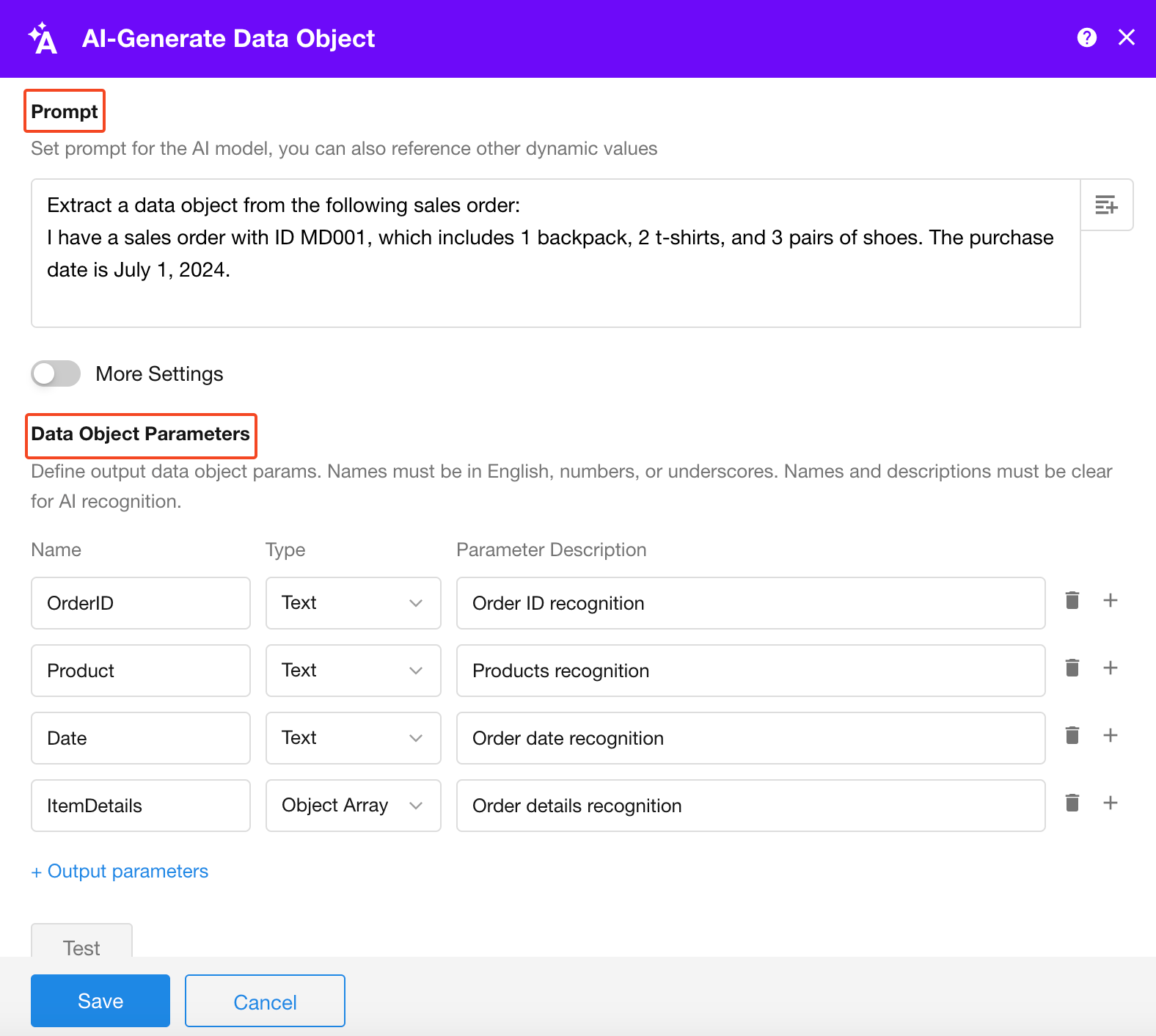

Prompt

Input prompt based on the scenario. It can be fixed text or a field selected from the node. In this example, we input fixed prompt for testing, which will be replaced with node fields after testing.

Text:

Extract objects from the following order text:
There is an order with the number MD001, purchased 1 backpack, 2 T-shirts, 3 pairs of shoes, and the purchase date is July 1, 2024.

Configure parameters for generated objects

Define the required parameter names, parameter types and parameter descriptions according to business needs. The parameter description should be as clear as possible to help AI identify the content and write it to the parameter.

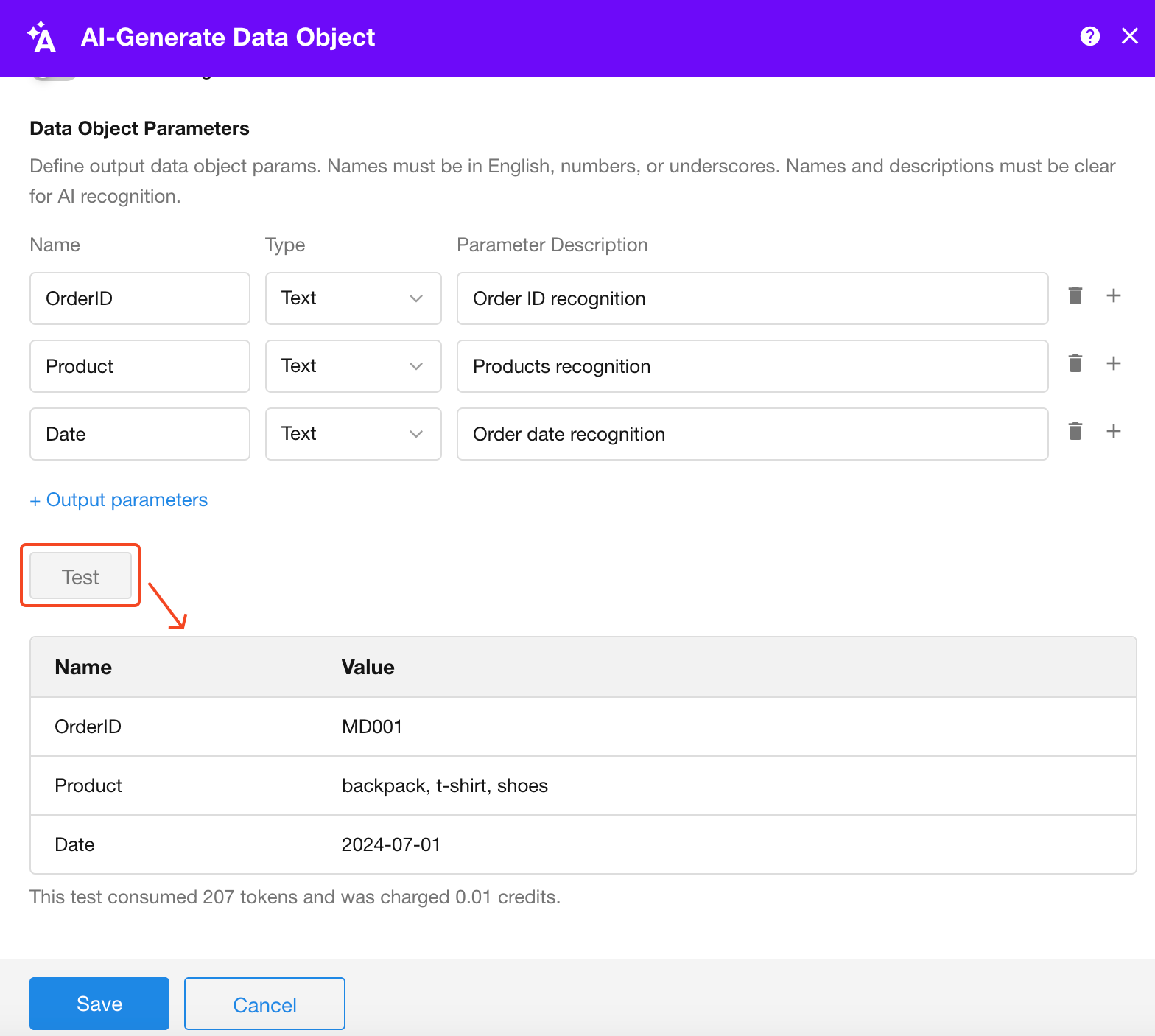

Test

Click the test button to check the results. After testing, replace the text in the prompt with node fields.

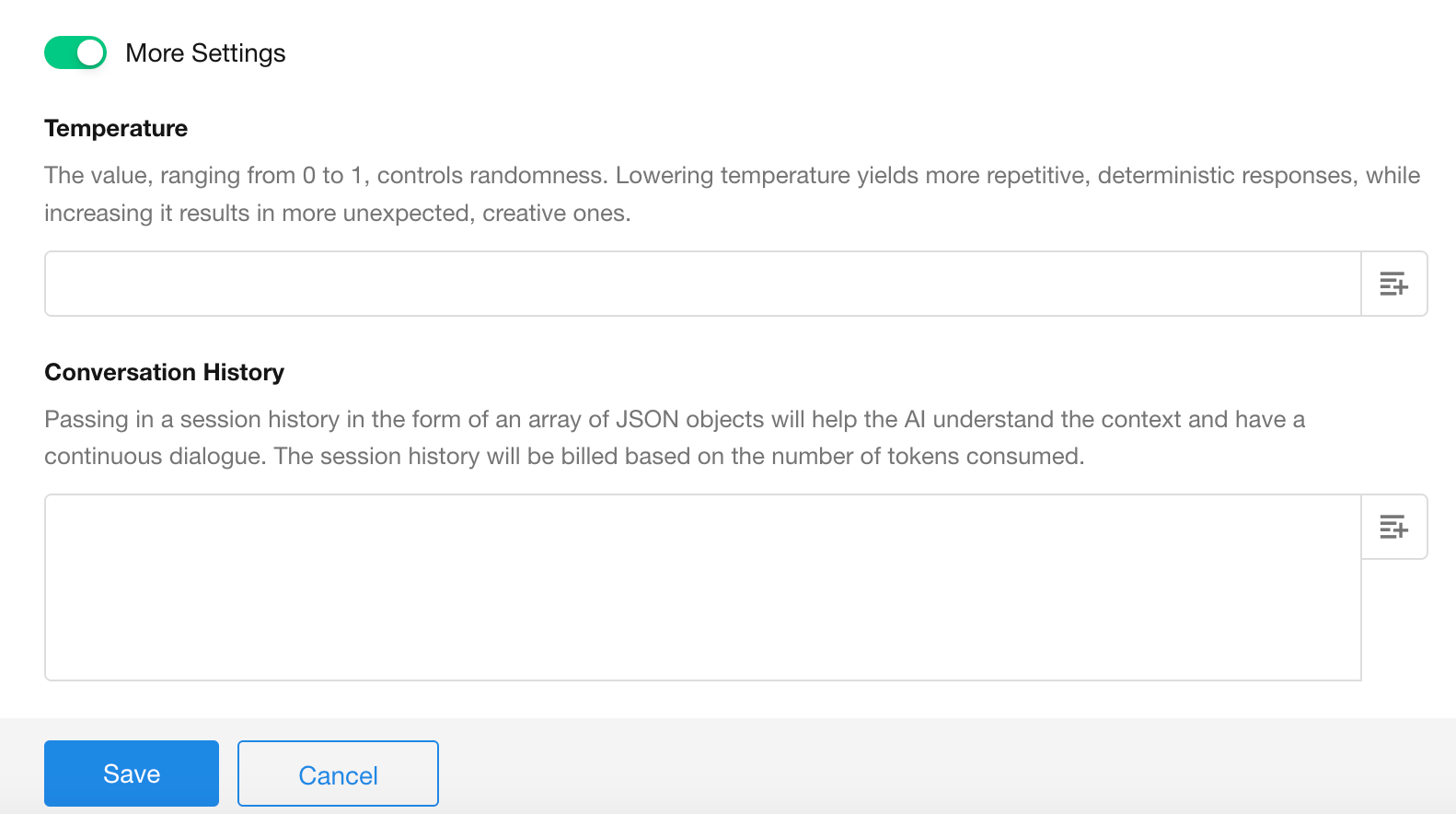

More settings

You can set system messages and temperature to obtain the desired data objects.

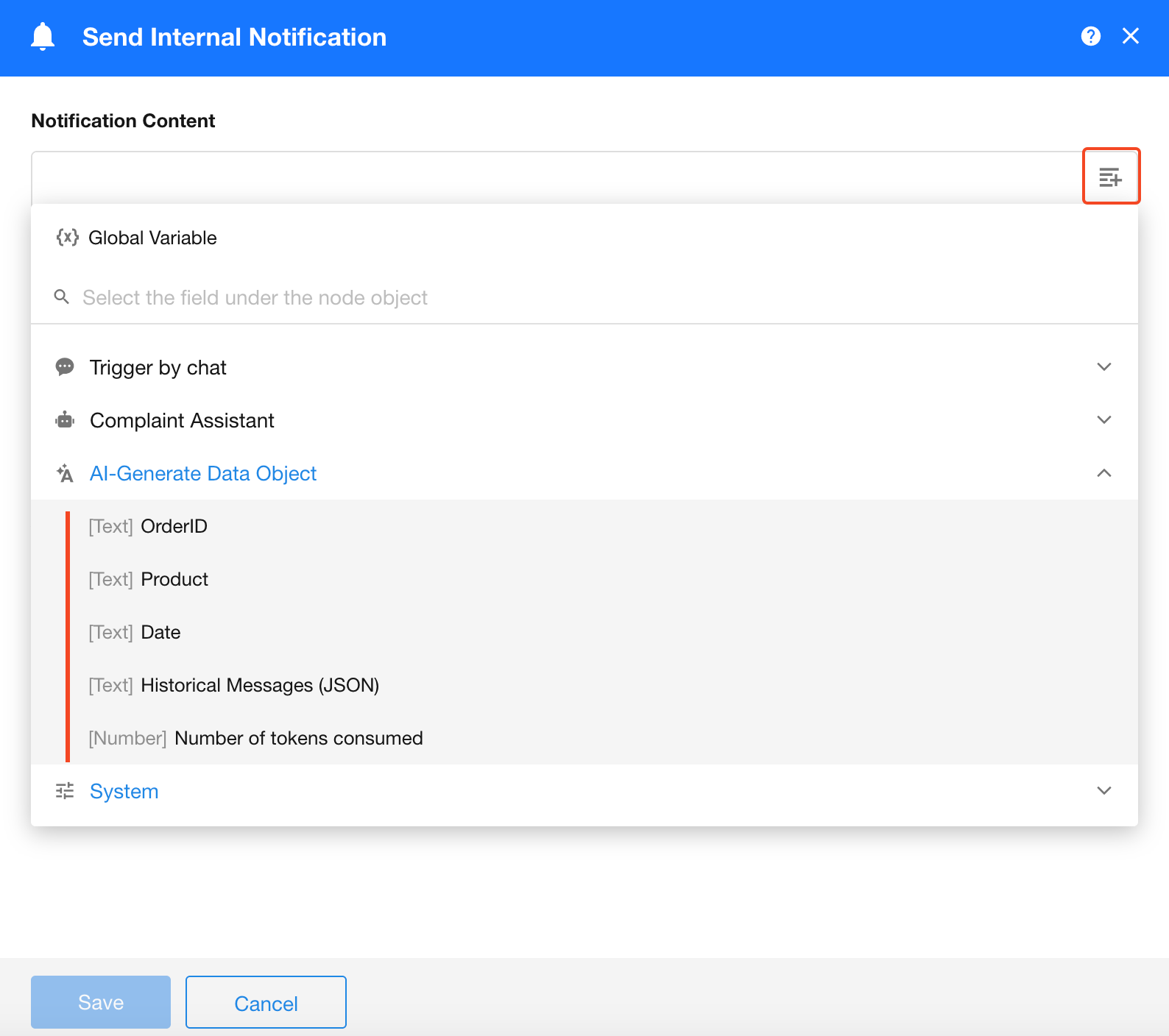

Use the generated data objects

After processing by this node, the available outputs include generated object parameters, history messages (JSON) and number of consumed tokens.
